Swing set brackets

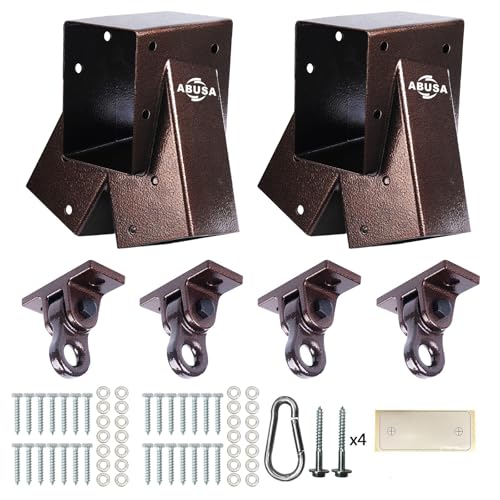

Bronze iron A frame brackets with four hangers

Two galvanized iron end brackets in bronze with four aluminum hangers and all the bolts, ready for lumber you cut to your own yard.

Rated 5.0 of 52 ratings on the listing

That count belongs to the listing as a whole. The other colours and sizes on it share the same total, so it is not a tally for this box alone.

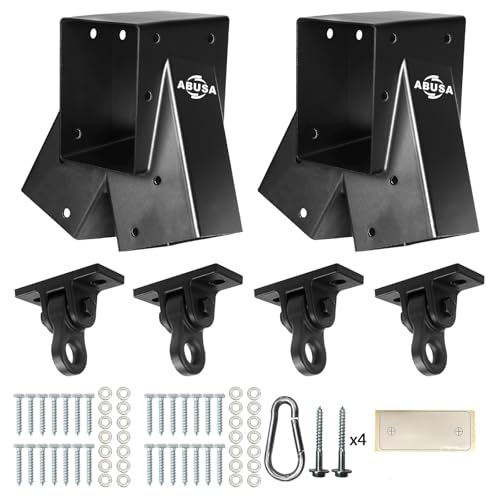

Black iron A frame brackets with four hangers

Material	Galvanized iron brackets with aluminum alloy hangers, painted
Fits	Top beam 5.5 x 3.5 in. actual (4x6 nominal), four legs 3.5 x 3.5 in. actual (4x4 nominal)
In the pack	Two brackets and four hangers
In the box	Two brackets, four hangers, 28 bolts and 28 washers
Not in the box	Lumber
Build time	30 minutes for the frame, 10 for the hangers
Goes on	Building an A frame.

$93.99

In stock

Noted on the live listing in October 2026. The listing has the final say.

The brackets are galvanized iron, the hangers are cast aluminum with a sealed bearing inside, and both arrive in the same carton with twenty-eight bolts and washers. You buy five pieces of timber locally and bring a drill. The frame takes about half an hour, the hangers another ten minutes.

Iron corners, aluminum loops

Two different metals doing two different jobs. Iron carries the frame because mass is what keeps a corner rigid; aluminum hangs the swing because it does not rust into the bearing after a season of rain.

Sized to dressed lumber

The top sleeve takes a 5.5 by 3.5 inch beam, the four leg pockets take 3.5 by 3.5 inch stock. Check what you are actually buying at the yard, since a board called a four by four is not four inches on either face.

Four hangers for two seats

Four hangers hang two swings. Each loop runs on a sealed bearing rather than a bolt through a hole, which is the difference between a quiet afternoon and the dry squeak everyone recognises.

What is in the carton

Two brackets, four hangers, twenty-eight bolts and twenty-eight washers. Chain, seats and the lumber are not in it, because long timbers and a flat carton do not travel together.

Order of assembly

Beam into the brackets first, while everything is still on the grass. Drill through the cast openings, bolt it, then fit the legs and lift. Hangers go on last, with the template stuck to the underside of the beam.

Anchoring the frame
